HDMI Repeater, A/F-A/F, Black

Product Code: 10.15.1201
EAN: 8433281008038
Description:

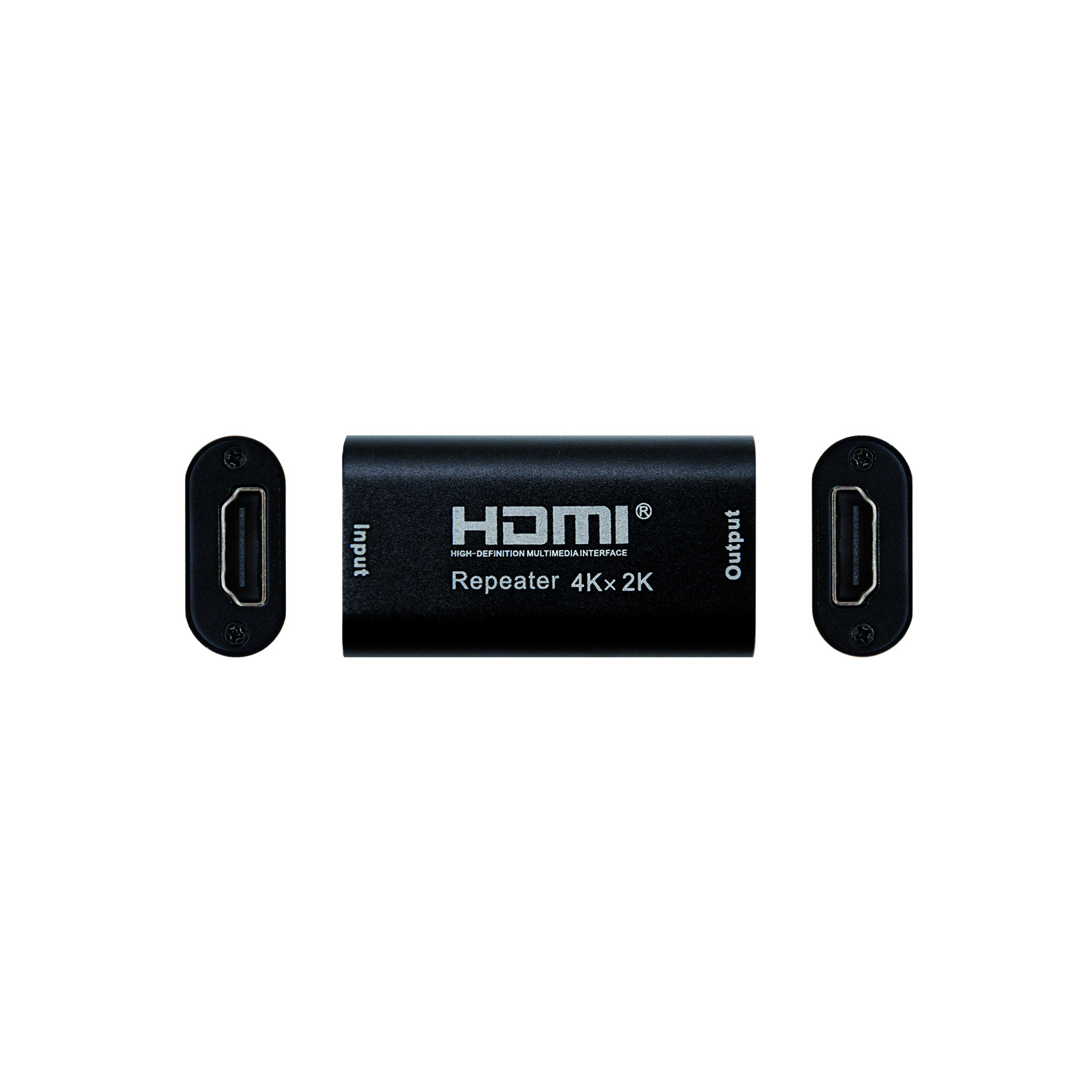

HDMI Repeater, A/F-A/F V1.4b with Type A female connectors on both ends
PDF Product Data Sheet
Especifications:

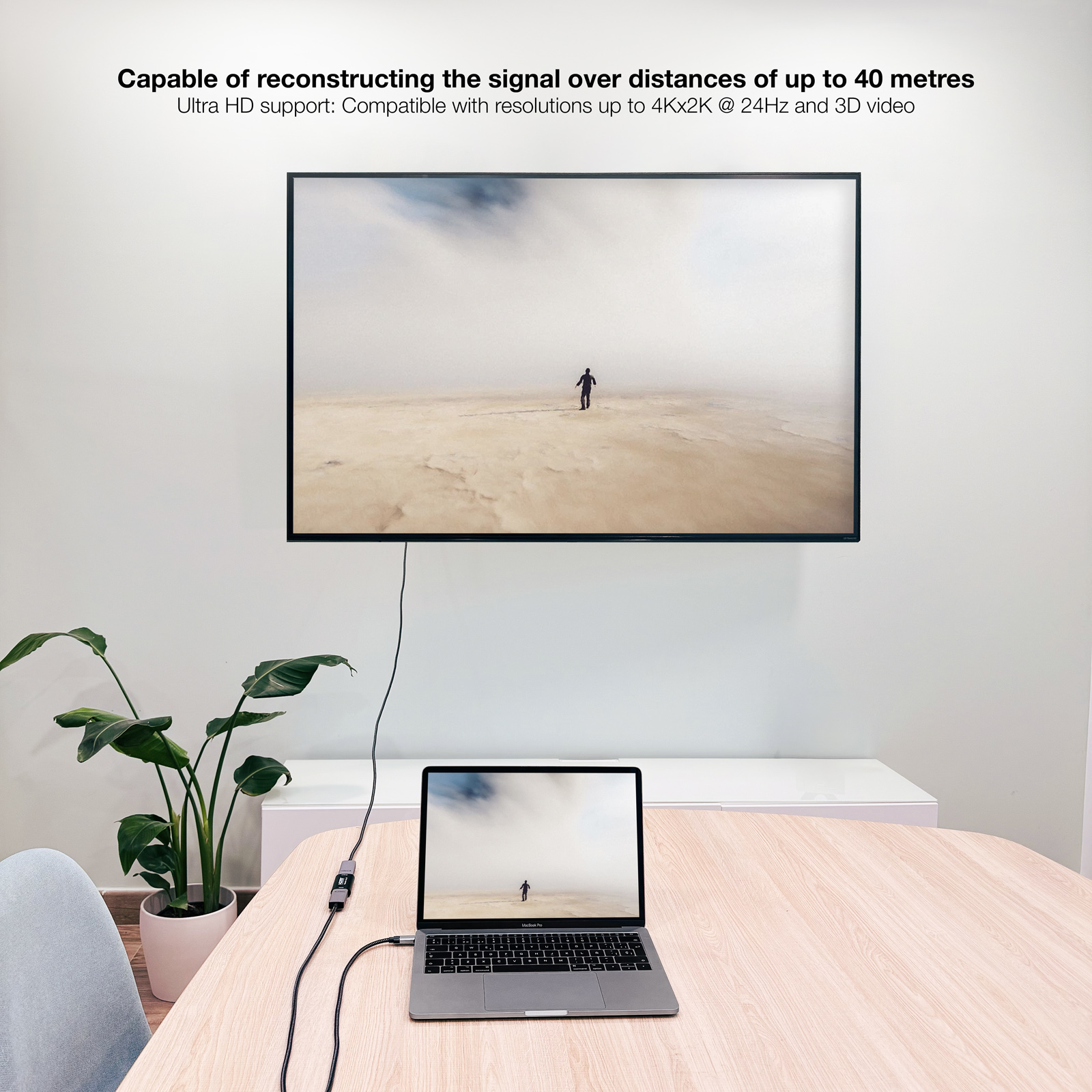

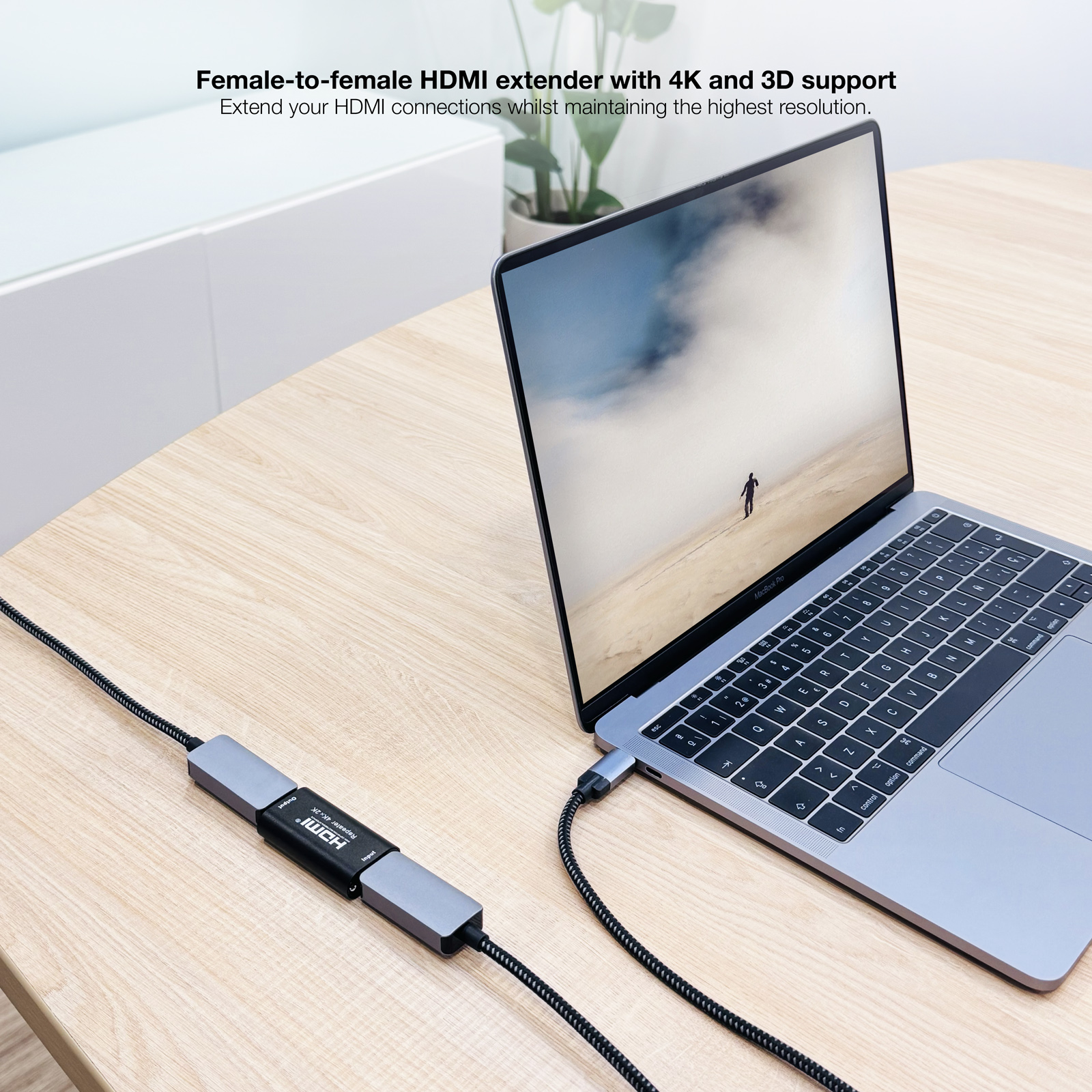

Ideal for connecting two HDMI cables with Type A male connectors. Operates at 3.4Gbps per lane (340MHz “pixel clock”) up to 4K x 2K 24Hz (297MHz) and 3D video up to (1080p and 1080i). High-quality gold-plated shielded connectors. 48-bit per pixel “Deep Color™”. The maximum accepted length for signal reconstruction is 40 meters in total to be used at 2160p@24Hz. Length: N/A Color: Black Standards: RoHS Functionality test: 100% tested

Package content:

1 x HDMI Repeater, A/F-A/F V1.4b, Black

Package Information:

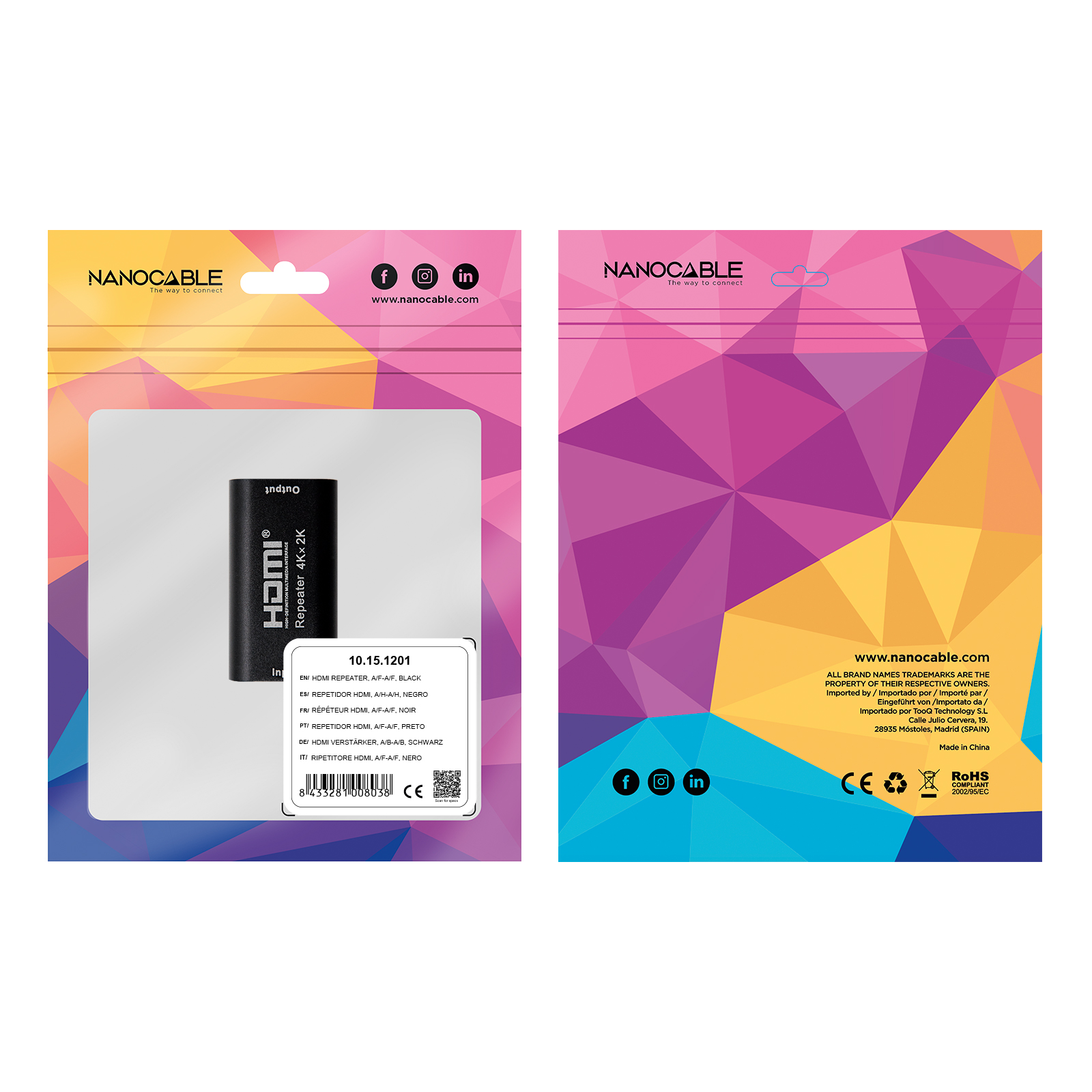

Retail bag with self-seal Approx. weight (kg): 0,028 Approx. dimensions (mm) H/W/L: 135x180x15

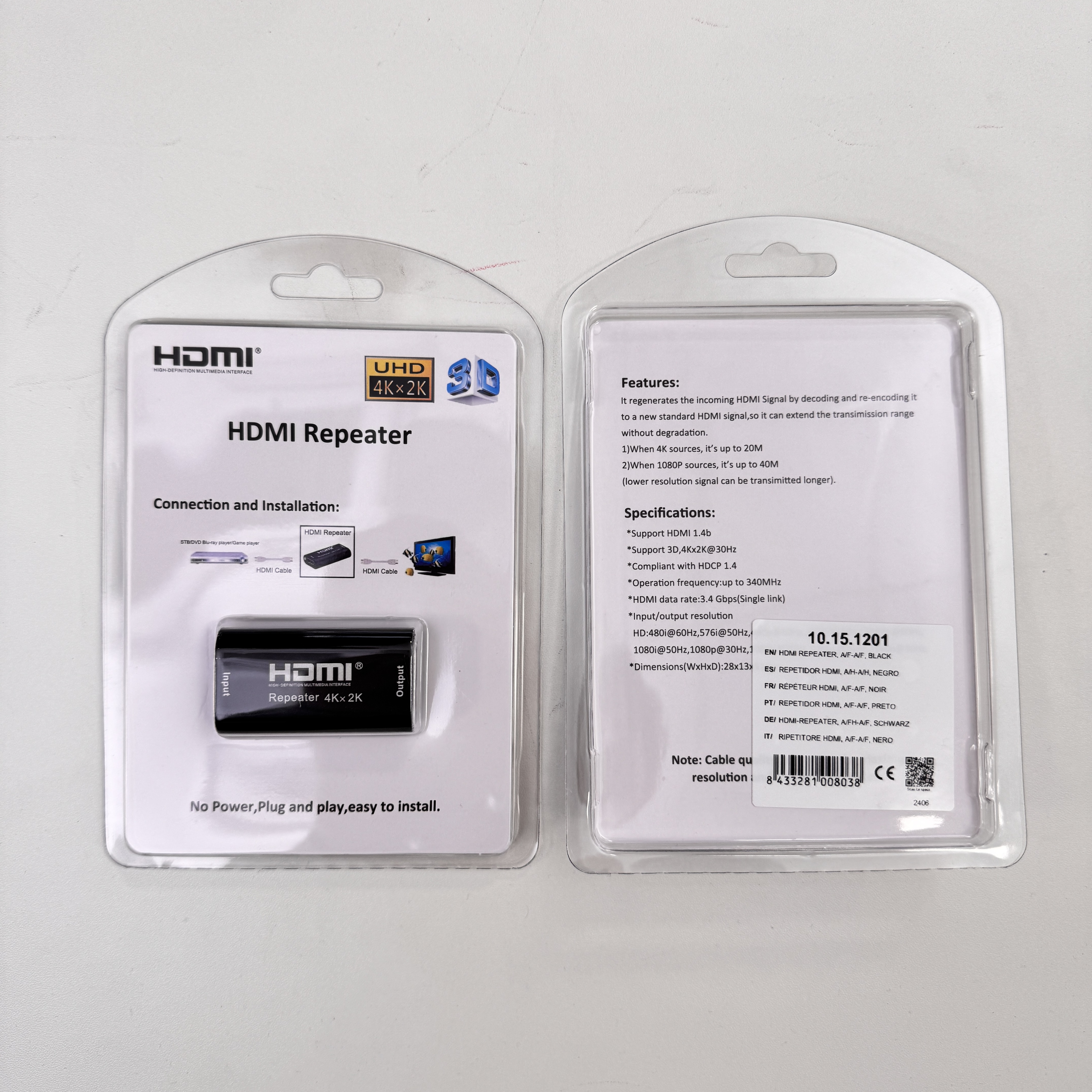

Imagen 5
